Diver - GB - Manual

Choose from six hand styles to match your preferred look. The images below show each style on the Diver watchface.

Simple Pointers

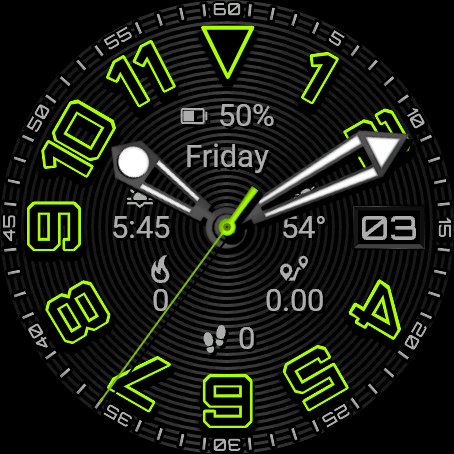

Diver

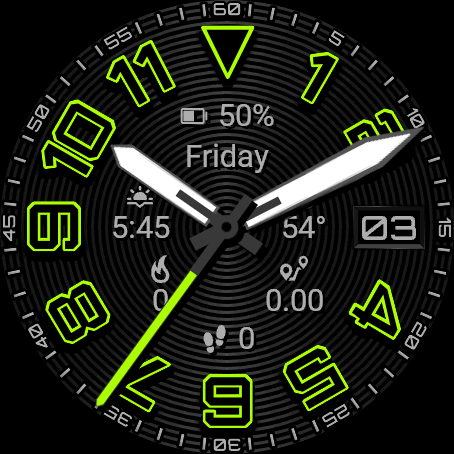

Sword

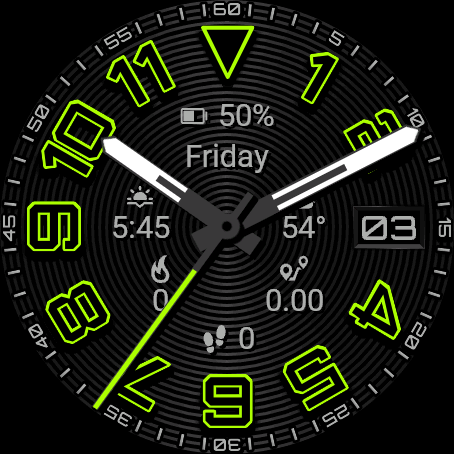

Pencil

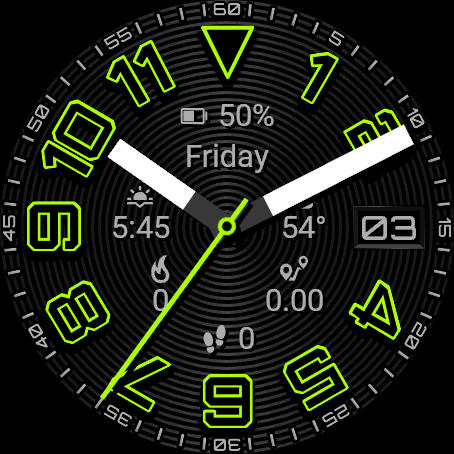

Delta Square

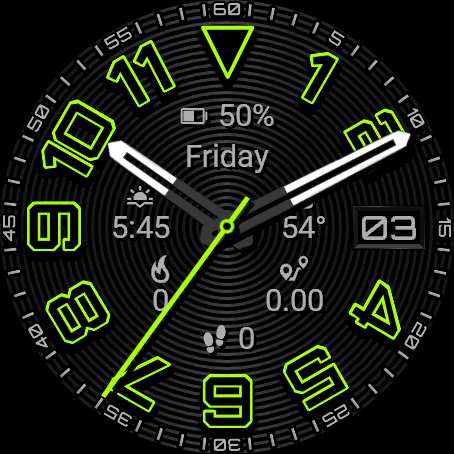

Aviator

The watchface allows you to customize the spacing and positioning of time elements and data fields independently using offset settings. This gives you fine control over the layout to match your preferences.

Offset Settings

Time Offsets

Controls X position, Y position, X spacing between elements, Y spacing, and Y position for minutes.

Default: 20,20,20,20,40

Field X Offsets

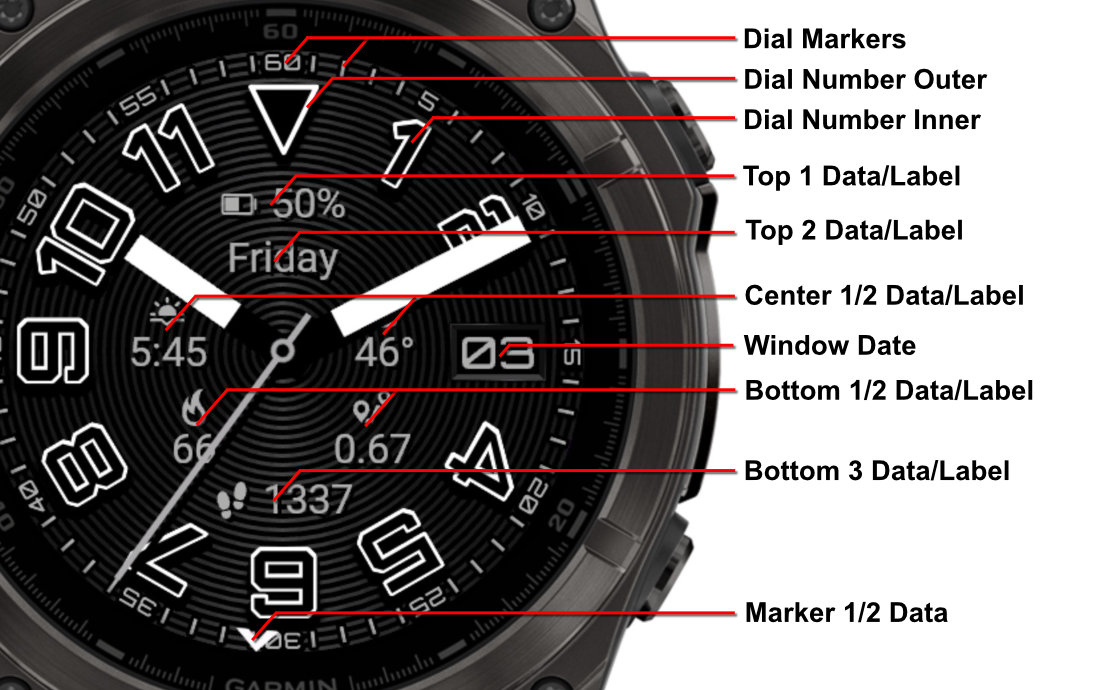

Controls horizontal positioning for all configurable fields. In order: Top 1, Top 2, Center1 , Center 2, Bottom1, Bottom 2, Bottom 3

Default: 20,20,20,20,20,20,20

Field Y Offsets

Controls primary vertical positioning for configurable fields. In order: Top 1, Top 2, Center1 , Center 2, Bottom1, Bottom 2, Bottom 3

Default: 20,20,20,20,20,20,20

Field Y2 Offsets

Controls vertical positioning for Label fields In order: Center1 , Center 2, Bottom1, Bottom 2

Default: 20,20,20,20

Visual Examples

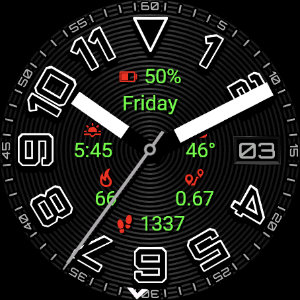

Default Offsets (X: 20,20,20,20,20,20,20 Y: 20,20,20,20,20,20,20 y2: 20,20,20,20 ):

Standard spacing with balanced layout.

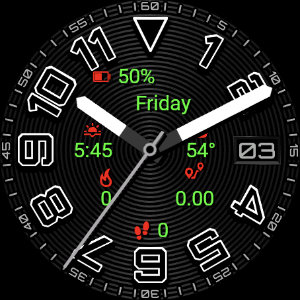

Increased Spacing (X: -20,40,20,20,20,20,20 Y: 20,20,20,20,20,20,30 Y2: 20,20,20,10):

Changed horizontal offset for Top 1 and 2:
- Top 1 -20, so 40 pixels to the left
- Top 2 40, so 420 pixels to the right
Changed Vertical offset for Bottom 3 to be 10px lower
Changed Bottom 2 to have the label 10px higher

This watchface is optimized for all supported devices. For the best battery life, use the AOD option "Hands Only".
To improve efficiency, avoid fields that update often, such as seconds, heart rate, and stress.
AOD brightness also has a big impact. You can set separate brightness levels for data, hands, and background. Lower brightness gives better battery life.
